Description
Overview:

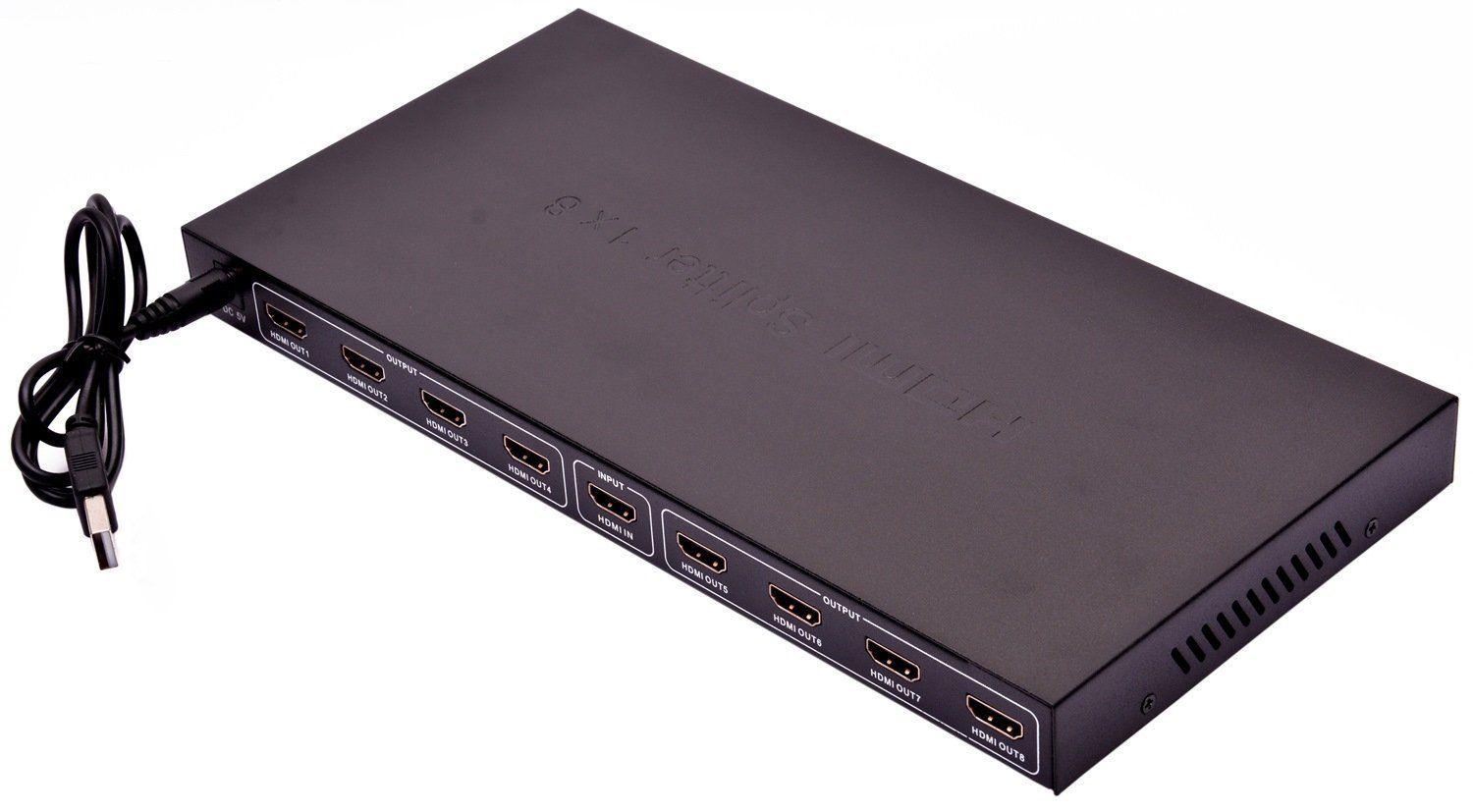

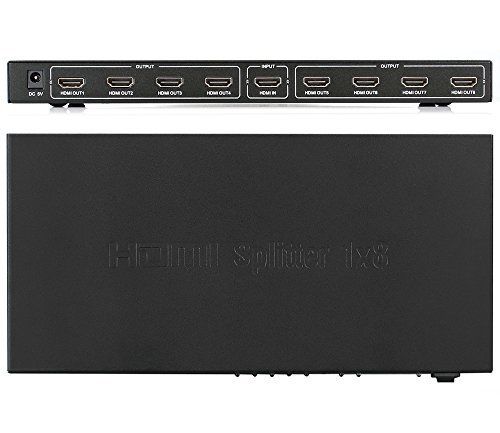

Full HD 1 Input to 8 Output HDMI Splitter, for PC, PS3, XBox360, Blue-ray, DVD, STB, DVR, to 8 HD TV simultaneously.
Can be used for Super Market, Shopping Mall, Projector Factory, Data Control Center, Information Distribution, Conference Room Presentation, Education and Training, Corporation Show Room, Home Theater , etc.
Feature:
Duplicate and boost the HDMI source from 1 source to 8 outputs
Enhance HD video signals over long distance broadcasting smoothly
Supports 3D(All units connected to the splitter outputs must support 3D)
Support audio format: DTS-HD/ Dolby-tureHD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD
Support video color format: 24bit/deep color 30bit/36bit
Support rack mounting kit and wall mounting kit version
Simple appearance looks decent and elegant
Specifications:
Color: Black
Input: 1 Way
Output 8 ways
Connector: HDMI type A standard 19pins Female
Input/ Output TMDS signal: 0.5-1.5Voltsp-p(TTL)
Input/ Output DDC signal: 5Voltsp-p(TTL)
Input cable distance: ≤10m AWG26 HDMI 1.3 standard cable
Output cable distance: ≤10m AWG26 HDMI 1.3 standard cable
HDMI version: HDMI 1.3b
HDCP version: HDCP1.2
Single link range: 1920 x 1080
HDMI Resolution: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Max bandwidth: 225MHz
Max tate: 6.75Gbps
Max working current: 500mA
Power adapter format Input: AC(50/60HZ):100V-240V,Output: DC 5V/1A
Package Content:
1 x 8 Way HDMI Splitter
1 x Power Adapter
1 x User Manual
