Description
BH SERIES OUTDOOR DMX LED WALL WASH BARS

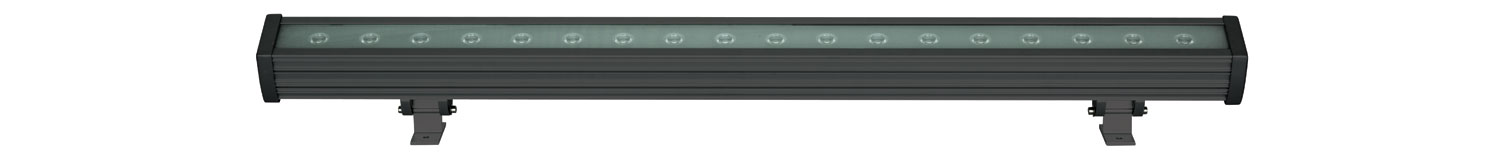

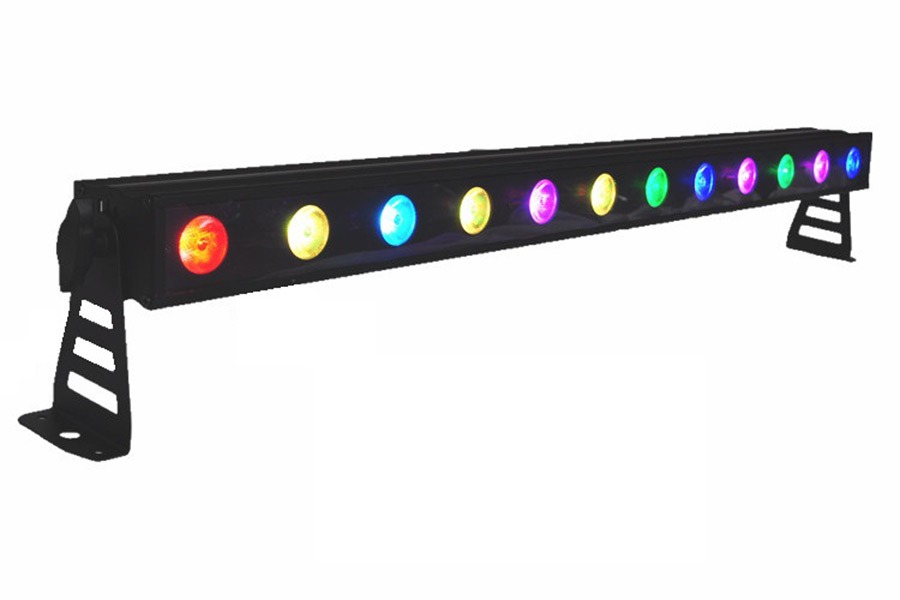

Weatherproof LED wall washer bar housed in a low profile aluminium enclosure with adjustable angle mounting feet. Colour selection can be set stand-alone or via DMX512 from a row of high output LEDs. Produces a dramatic wash of colour across walls or architectural features.
- Full RGB colour mixing
- Stand-alone or DMX control
- High efficiency, high output LEDs
- Angle adjustable mounting feet
- IP65 rated is only applicable to unit – cable must be permanently fixed in a location, mechanically protected, buried or physically protected.
| Total luminous flux | 810lm |
|---|
| Luminous efficacy | 27lm/W |
|---|
| Power consumption | 30W |
|---|
| LED colour | Tri-colour (RGB) |
|---|
| LED quantity | 18 |
|---|
| LED power | 1.5W |
|---|
| Beam angle | 25° |
|---|
| Projection distance | 10 – 15m |
|---|
| Dimensions | 1000 x 118 x 78mm |
|---|
| Weight | 3.9kg |
|---|
| Power supply | 176-230Vac, 50/60Hz |
|---|
| Housing material | Aluminium |
|---|
| Housing colour | Black |
|---|
| DMX connection | 3 pin IP65 connector (in and out) |
|---|
| DMX channels | 3 (1 Red, 2 Green, 3 Blue) |
|---|
| Operating temperature | -20°C to +45°C |
|---|
| IP rating | IP65 |
|---|
| LED lifespan | >35000 hours |
|---|
